RevX Wellness Ozone Water Filtration System Cold Plunge Cabinet
RevX Wellness Ozone Water Filtration System Cold Plunge Cabinet

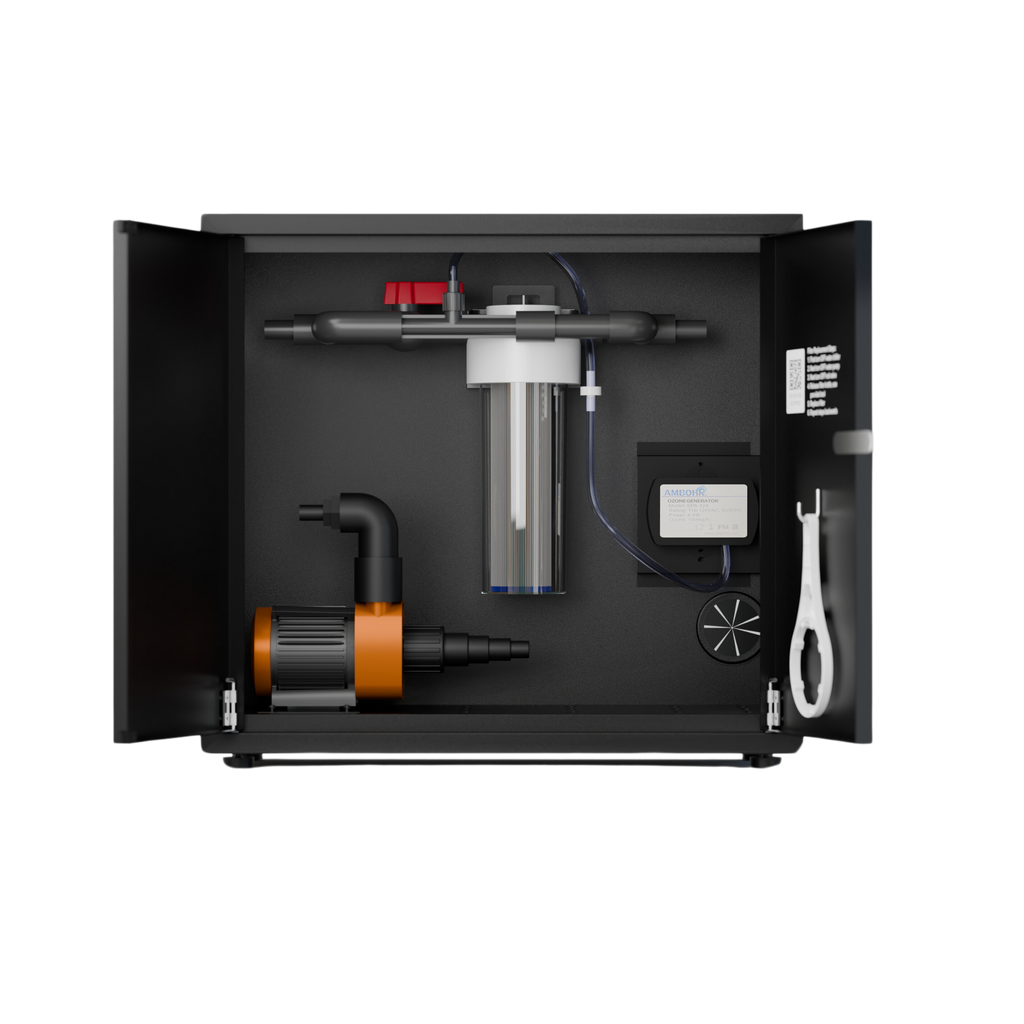

RevX Wellness's Ozone Water Filtration System is its original pre-assembled sanitation cabinet: a matte-black steel box housing a 1,700 GPH pump, an Ambohr SPA-124 ozone generator with a venturi injector, a clear 20-micron filter housing and a shut-off valve, plumbed in 3/4 in. PVC with slip-on barbed adapters. RevX says the pump is built to run continuously and the ozone generator should run about one hour in every 24 on a timer. At $500 it suits someone adding filtration and sanitation to an existing tub and chiller on a budget, or who prefers ozone to UV.
Key specifications
| Spec | Value |
|---|---|
| Pump | 1,700 GPH, submersible or inline (RevX rating); wattage not published |
| Sanitation | Ambohr SPA-124 ozone generator with venturi injector |
| Ozone duty cycle | RevX recommends running the ozone generator 1 hour per 24 hours on a timer (timer not included) |
| Filter | 20-micron cartridge in a clear housing |
| Plumbing | 3/4 in. PVC with slip-on barbed hose adapters at inlet and outlet; built-in shut-off valve |
| Cabinet | All-steel, black matte finish |
| Electrical | Ozone generator and pump each 110 V / 60 Hz; RevX's FAQ gives up to 3 A combined for its filtration cabinets |
| Shipping weight | About 52 lb (RevX listing, 23.6 kg) |
| Origin | Designed in California, manufactured in Asia (RevX) |
| Chiller | Not included |
| Use | Indoor or outdoor |
| Warranty | 1 year standard |
What's in the box
- Metal cabinet
- Ozone generator with venturi injector, 110 V / 60 Hz
- Water pump, 110 V / 60 Hz
- Clear water filter holder and filter
- Shut-off valve
- Pre-assembled plumbing parts
Good to know
- Timer: RevX says this is the one component it recommends on a timer, but no timer is listed in the box. Budget for a plug-in timer.
- Plumbing size: This cabinet is 3/4 in.; RevX's current X-FLOW cabinet and its newer tubs use 1 in. fittings. Check tubing and adapter sizes against your tub before ordering.
- Not published: pump wattage, cabinet dimensions, empty weight (52 lb is RevX's shipping weight) and ozone output. RevX sells a 1,700 GPH pump separately rated at 150 W but does not say whether it is the same unit.

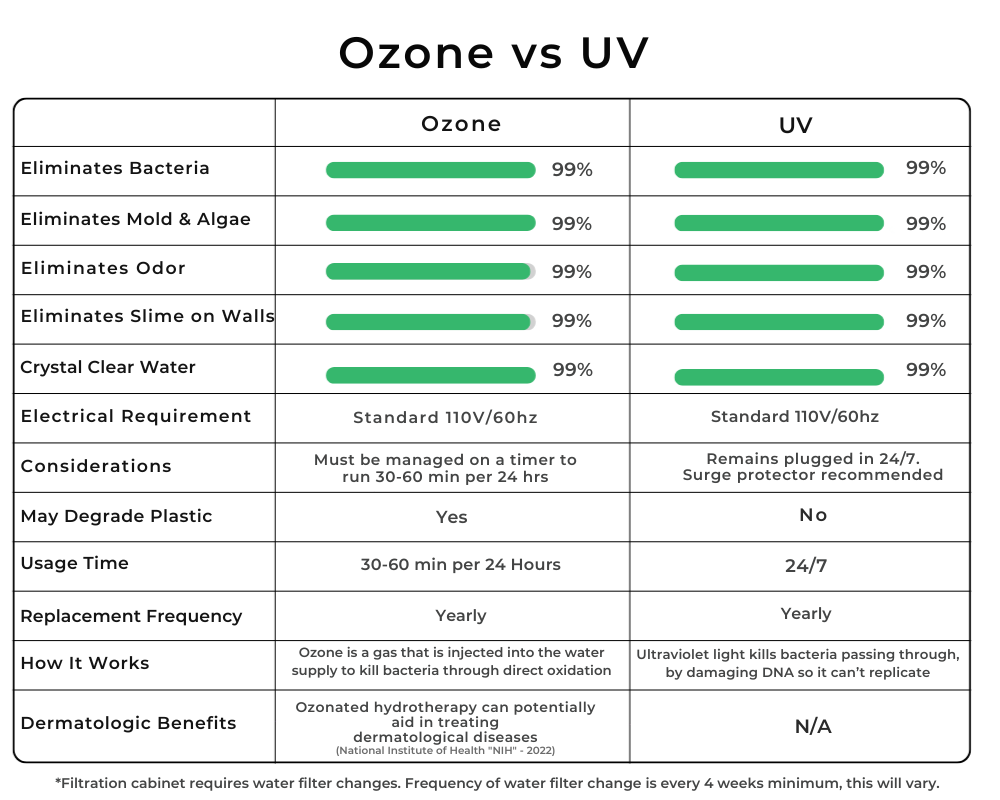

- Compared with the X-FLOW: the $800 X-FLOW uses a 200 W heat-sink pump, UV-C instead of ozone, 1 in. plumbing and IPX4-rated parts. This cabinet is the lower-cost, ozone-based option.
- Returns: RevX's policy allows 30 days for unused items in original packaging but excludes items bought on sale, and this cabinet shows a sale price on RevX's site. See Returns by brand.
- Not ideal for: anyone expecting the cabinet to cool water, tubs plumbed in 1 in. without adapters, or anyone who does not want to manage an ozone timer.
Specifications are from the manufacturer; we compared published specs and have not lab-tested this unit.
Written warranty: read RevX Wellness's published warranty terms before you buy. We will also email you the full text free of charge: support@comparadar.com.
Specs at a glance
As published by RevX Wellness. Missing rows mean the brand did not publish a figure.- Type
- Accessory
- Capacity
- n/a
- Chiller
- Not included
- Temperature range
- n/a
- Filtration
- 20-micron cartridge + Ambohr SPA-124 ozone generator
- Insulation
- n/a
- Power
- Not published (1,700 GPH pump + ozone generator)
- Voltage
- 110 V / 60 Hz, two plugs
- Dimensions
- Not published
- Weight (empty)
- About 52 lb shipping (RevX listing)
- Included
- Steel cabinet, ozone generator with venturi, pump, clear filter holder and filter, shut-off valve, pre-assembled plumbing
- Warranty
- 1 year standard
Not medical advice. Talk to your doctor before starting sauna or light therapy, especially if you are pregnant, have a heart condition, or take photosensitizing medication. How we make money.
