RevX Wellness X-FLOW Cold Plunge Filtration & UV Sanitation System
RevX Wellness X-FLOW Cold Plunge Filtration & UV Sanitation System

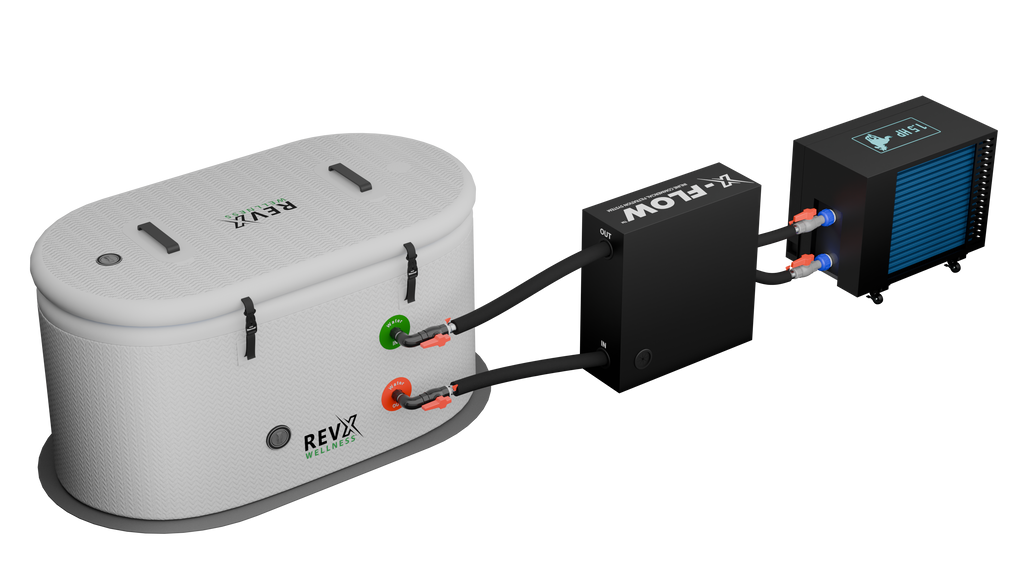

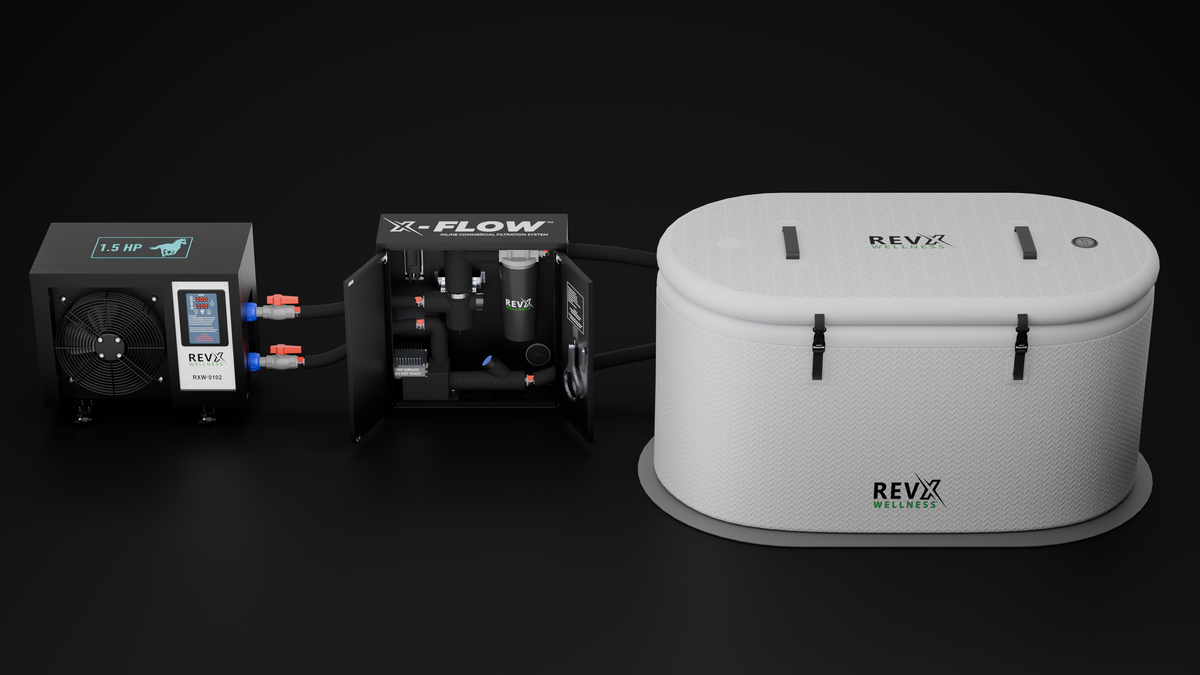

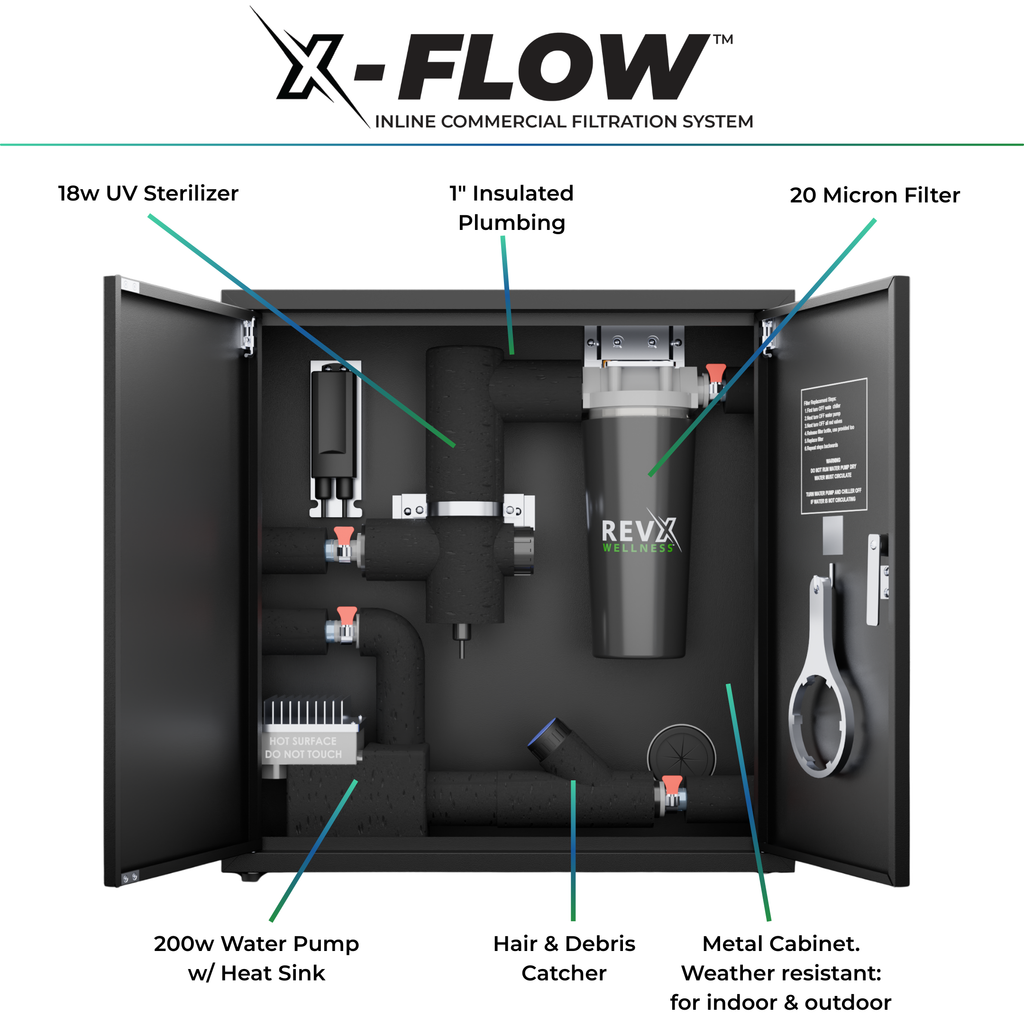

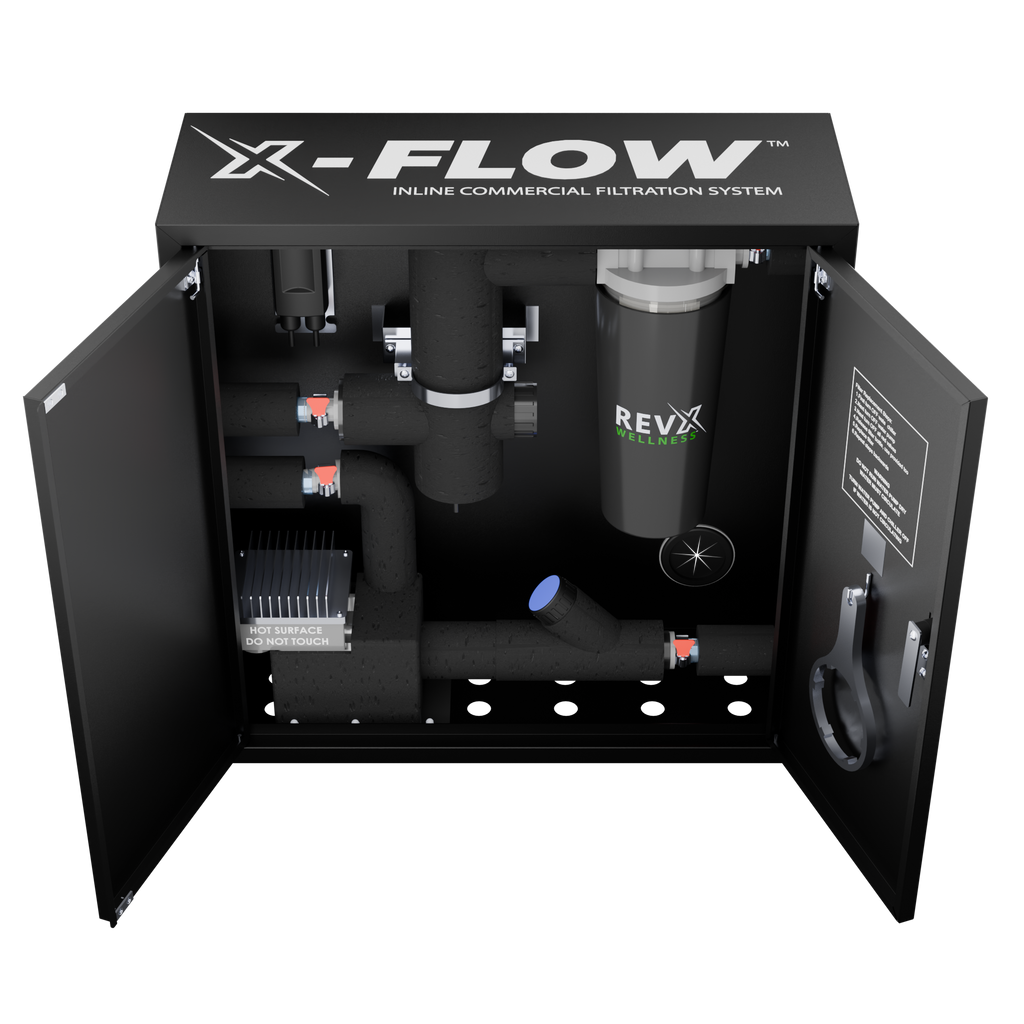

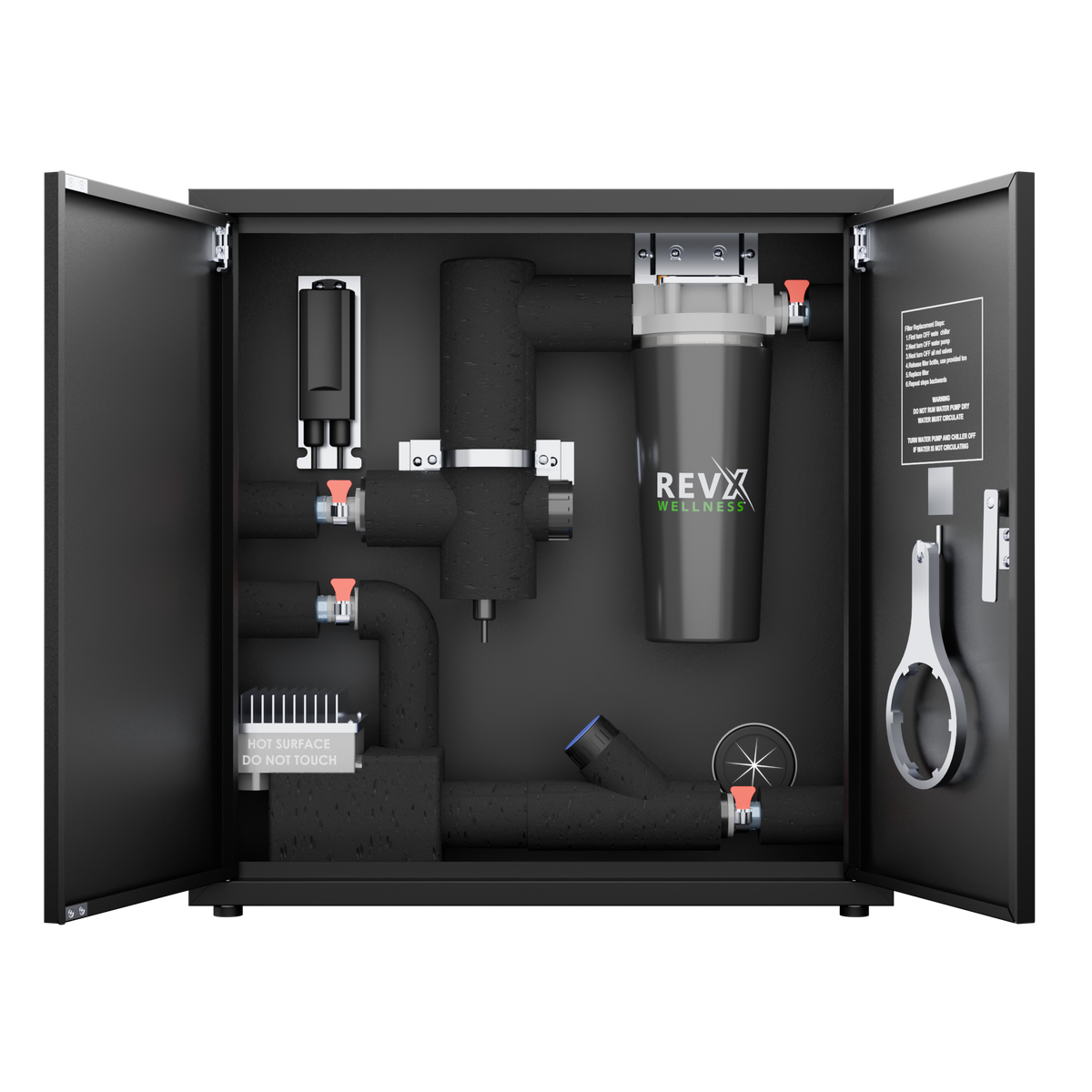

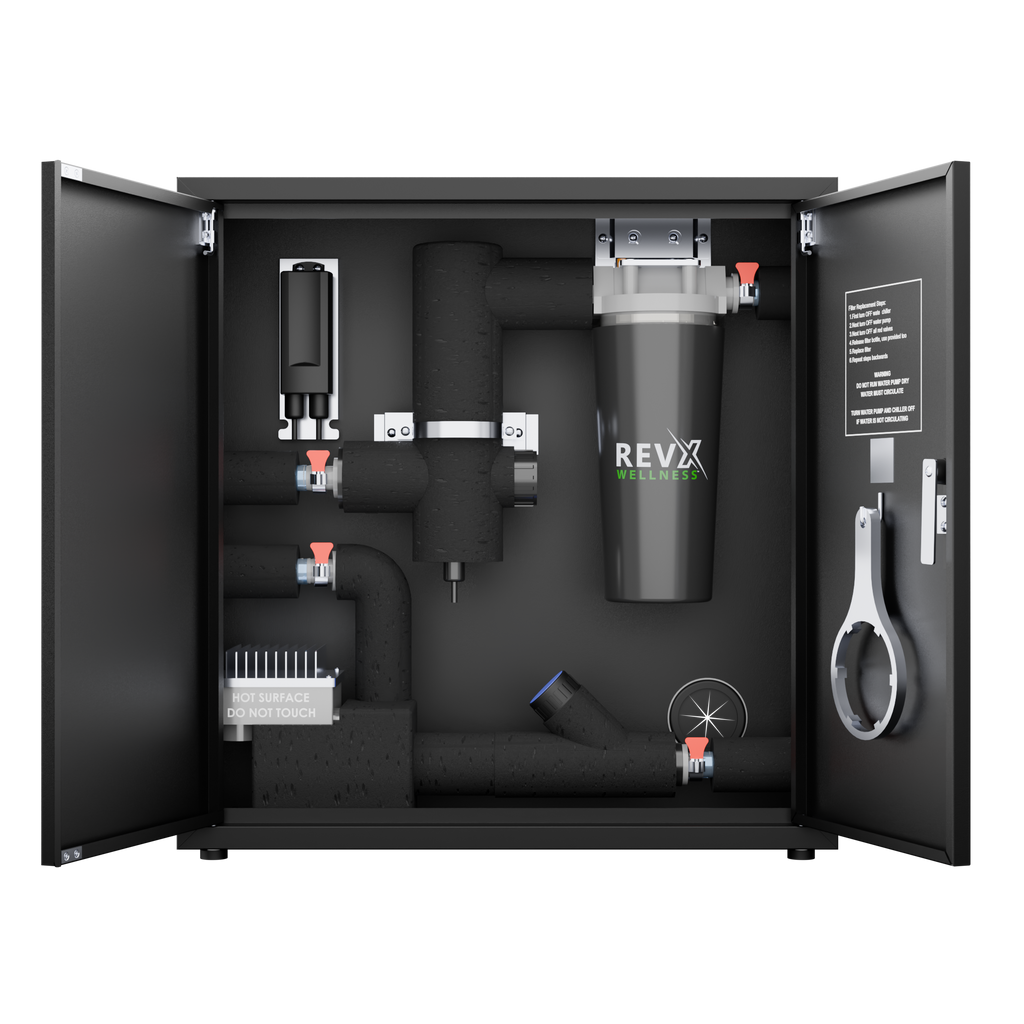

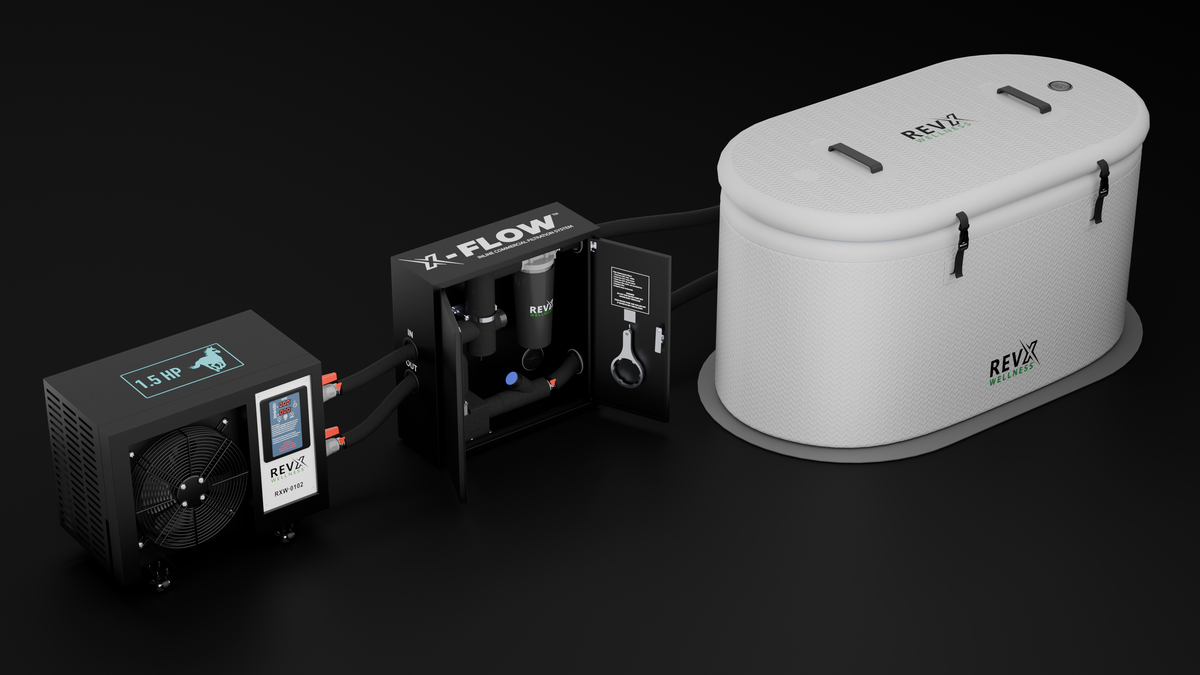

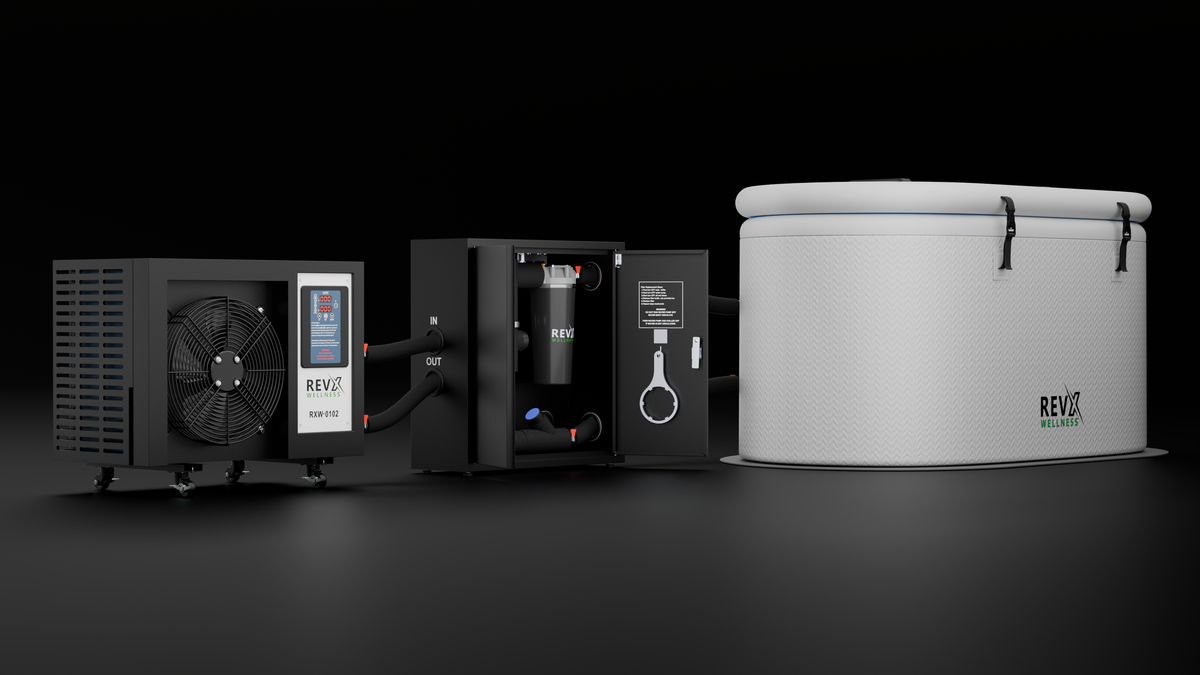

The X-FLOW is RevX Wellness's current filtration and sanitation cabinet, the one it now ships in its chiller bundles. It pairs a 200 W circulation pump with a heat sink, an 18 W UV-C lamp and a 10 in. 20-micron pleated cartridge in a pre-assembled unit with 1 in. barb fittings, and is meant to run around the clock. RevX sells the chiller separately; the X-FLOW only moves, filters and sanitizes the water. At $800 it suits someone building a plunge around a RevX chiller, or replacing an older ozone-based cabinet.
Key specifications
| Spec | Value |
|---|---|
| Pump | 200 W circulation pump with integrated heat sink |
| Flow rate | RevX lists both 'approx. 720+ GPH' and 'approx. 2,720+ GPH actual throughput' on the same page; see below |
| Sanitation | 18 W UV-C lamp |
| Filter | 10 in. pleated cartridge, 20 micron; change every 2–4 weeks, per RevX |
| Fittings | 1 in. barb connectors |
| Electrical | Two plugs (pump and UV), 110 V, up to 3 A combined (RevX FAQ) |
| Footprint | About 26 x 15 in. (RevX bundle diagram) |
| Water resistance | IPX4-rated components, indoor or outdoor |
| Shipping weight | About 65 lb (RevX listing, 29.5 kg) |
| Chiller | Not included |
| Warranty | Not stated on the X-FLOW page; RevX lists a 1-year standard warranty on its systems |
Good to know
- Flow figure: RevX's feature text says the pump turns water over at about 720+ GPH, and its spec list says about 2,720+ GPH. The difference is nearly fourfold; we show both and suggest asking RevX which applies.

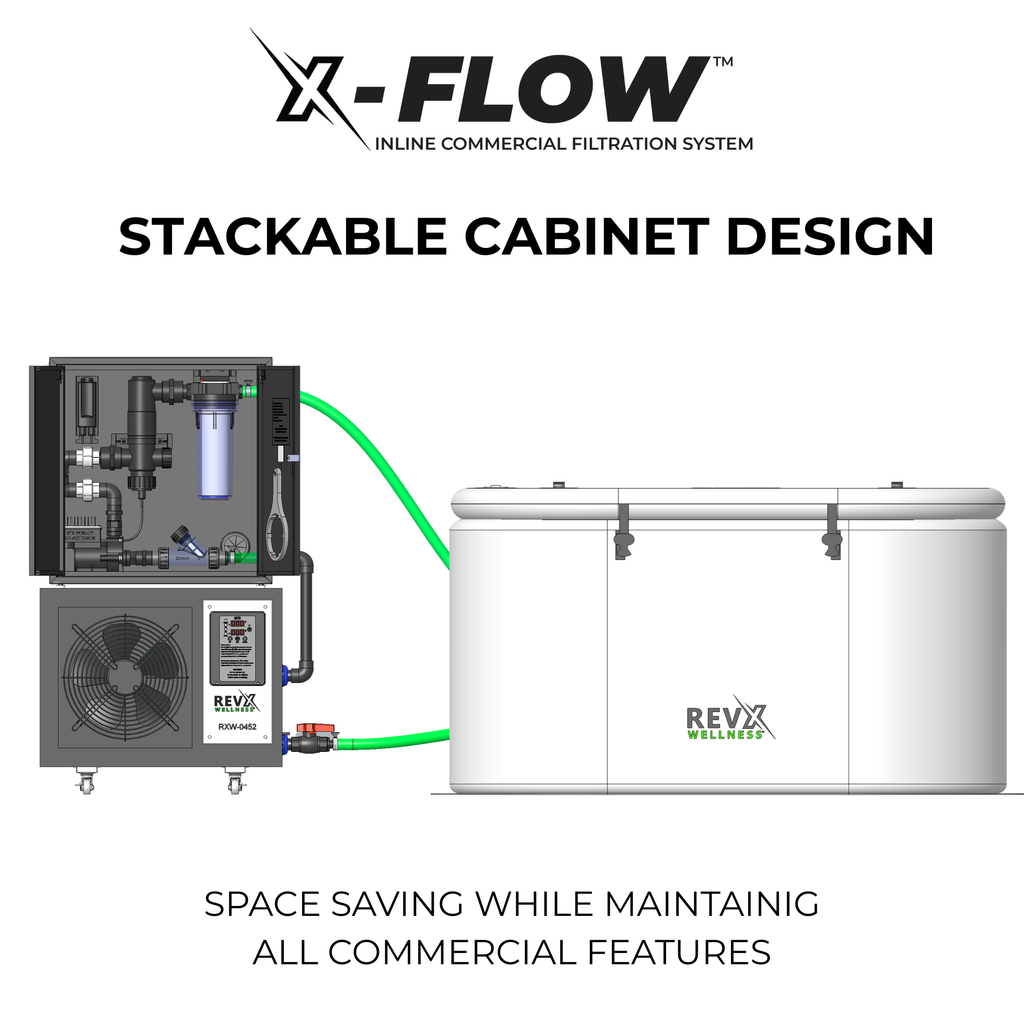

- Stacking: The X-FLOW page says a plumbing kit that lets the cabinet sit on top of a RevX chiller was due in summer 2026; RevX now lists a $100 Stackable Plumbing Kit for the X-FLOW separately. It is not in the box here.
- Box contents: RevX does not publish an itemized box list for the X-FLOW beyond describing it as pre-assembled with 1 in. barb fittings. Tubing kits and valves are sold separately.
- Consumables: RevX's standard filter 5-packs ($40) and the XTREME/X-FLOW/LUX replacement UV bulb ($55) fit this cabinet. The LUX chiller system uses a different filter size.

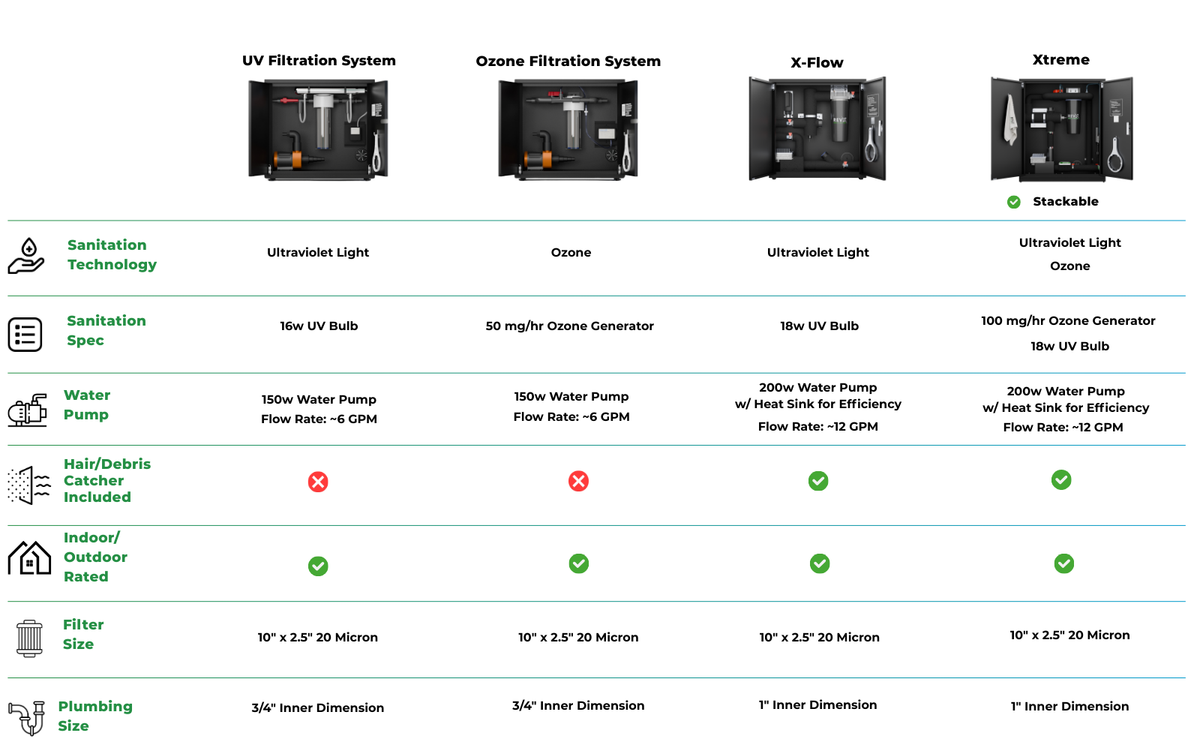

- Compared with RevX's Ozone system: the $500 ozone cabinet uses a 1,700 GPH pump, 3/4 in. plumbing and an ozone generator that RevX says to run on a timer; the X-FLOW uses UV, 1 in. plumbing and a heat-sink pump, with no timer needed.
- Returns: RevX's policy allows 30 days for unused items in original packaging but excludes items bought on sale, and the X-FLOW shows a sale price on RevX's site. See Returns by brand.
- Not ideal for: anyone expecting the cabinet to cool water (it does not), tubs plumbed in 3/4 in. without adapters, or anyone who wants a published noise or wattage-at-the-wall figure.
Specifications are from the manufacturer; we compared published specs and have not lab-tested this unit.
Written warranty: read RevX Wellness's published warranty terms before you buy. We will also email you the full text free of charge: support@comparadar.com.
Specs at a glance
As published by RevX Wellness. Missing rows mean the brand did not publish a figure.- Type
- Accessory
- Capacity
- n/a
- Chiller
- Not included
- Temperature range
- n/a
- Filtration
- 10 in 20-micron pleated cartridge + 18 W UV-C
- Insulation
- n/a
- Power
- 200 W pump + 18 W UV lamp (RevX figures)
- Voltage
- 110 V, two plugs, up to 3 A combined
- Dimensions
- About 26 x 15 in footprint (RevX diagram)
- Weight (empty)
- About 65 lb shipping (RevX listing)
- Included
- Pre-assembled cabinet with 1 in barb fittings; box list not published
- Warranty
- Not stated for this item; RevX's standard is 1 year
