Renew Red Light The Panorama Panel Red, NIR & Blue LED Panel
Renew Red Light The Panorama Panel Red, NIR & Blue LED Panel

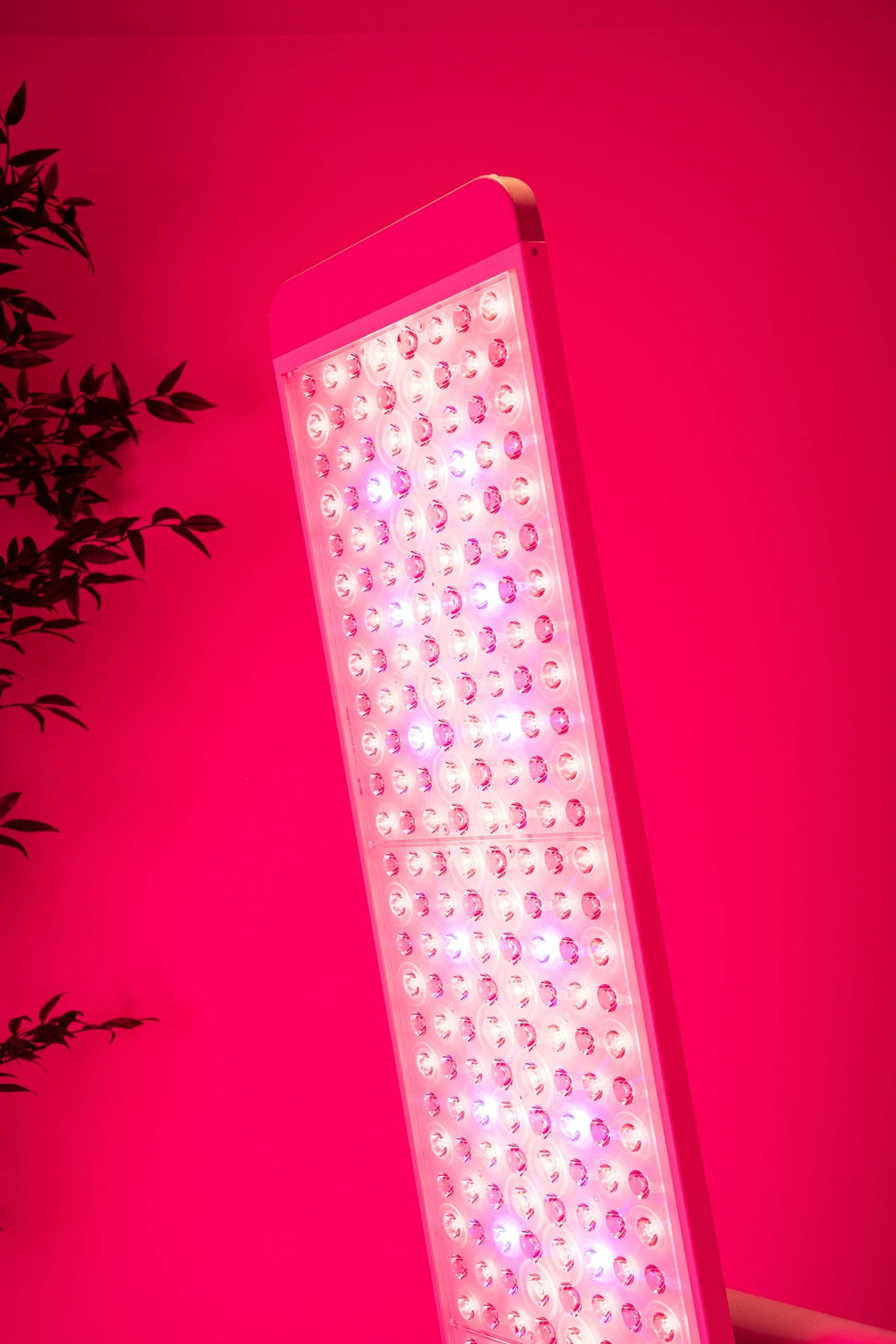

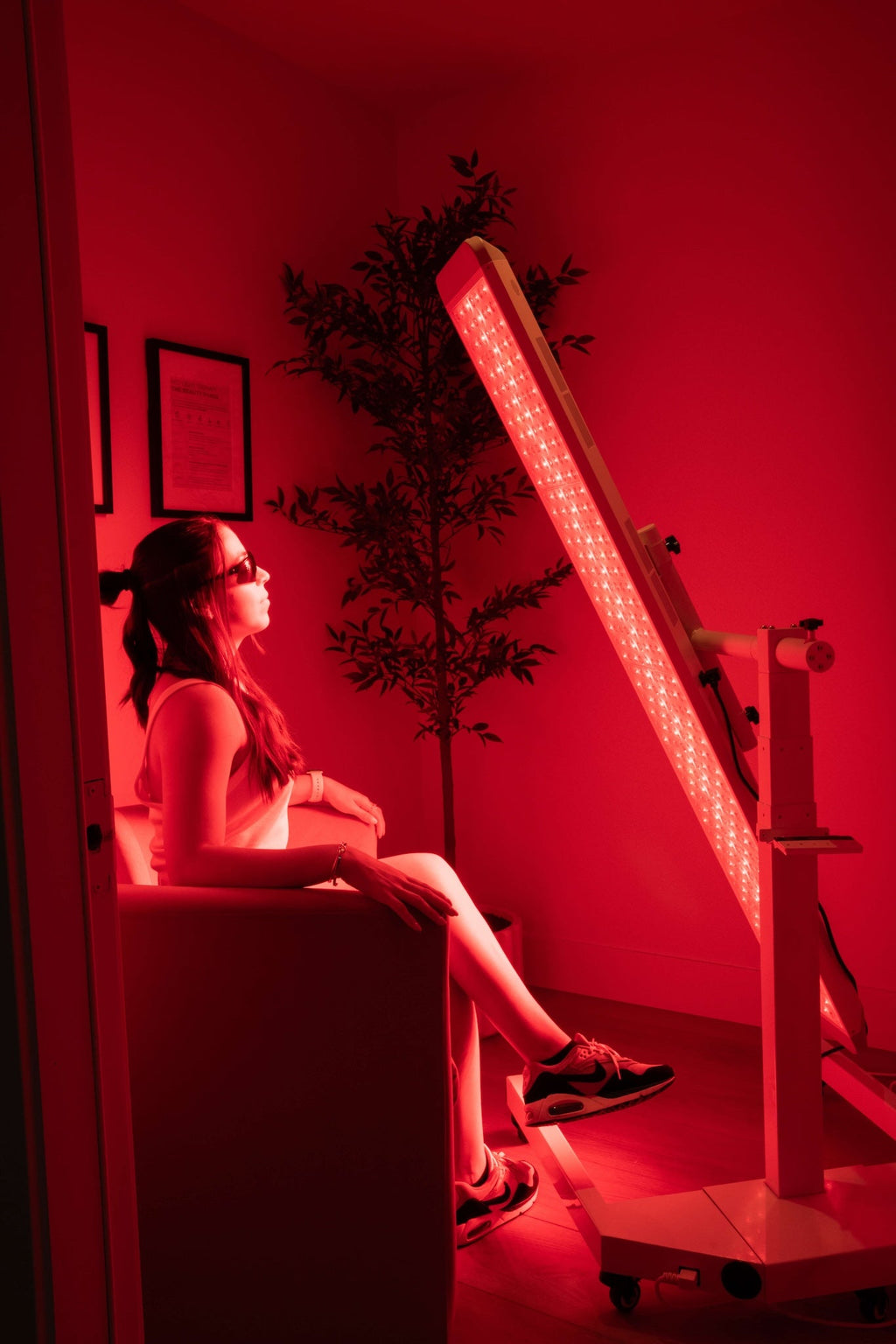

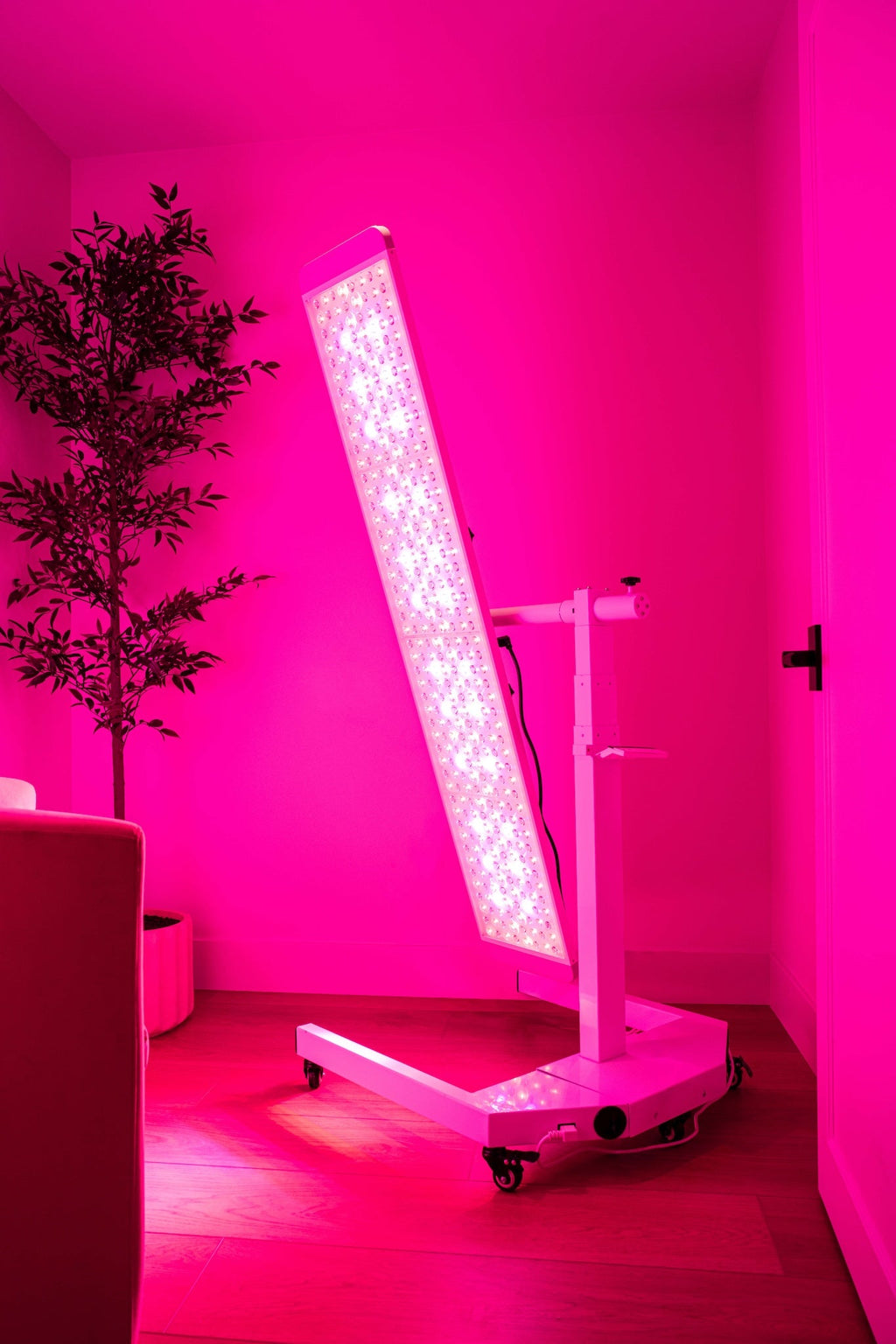

The Panorama Panel is Renew Red Light's three-channel panel: 480 five-watt LEDs covering red (610, 630 and 660 nm), near-infrared (810, 830 and 850 nm) and blue (450 nm), each channel adjustable on its own. The 64.3 in. panel sits on a motorized stand that lifts and rotates a full 360°, so it can stand upright beside you or lie flat over a bed or massage table. Renew builds it to order with a lead time of about 4–6 weeks. It suits a home or studio that wants lying-down sessions as well as standing ones.
Key specifications
| Spec | Value |
|---|---|
| LEDs | 480 x 5 W LEDs with ceramic substrate |

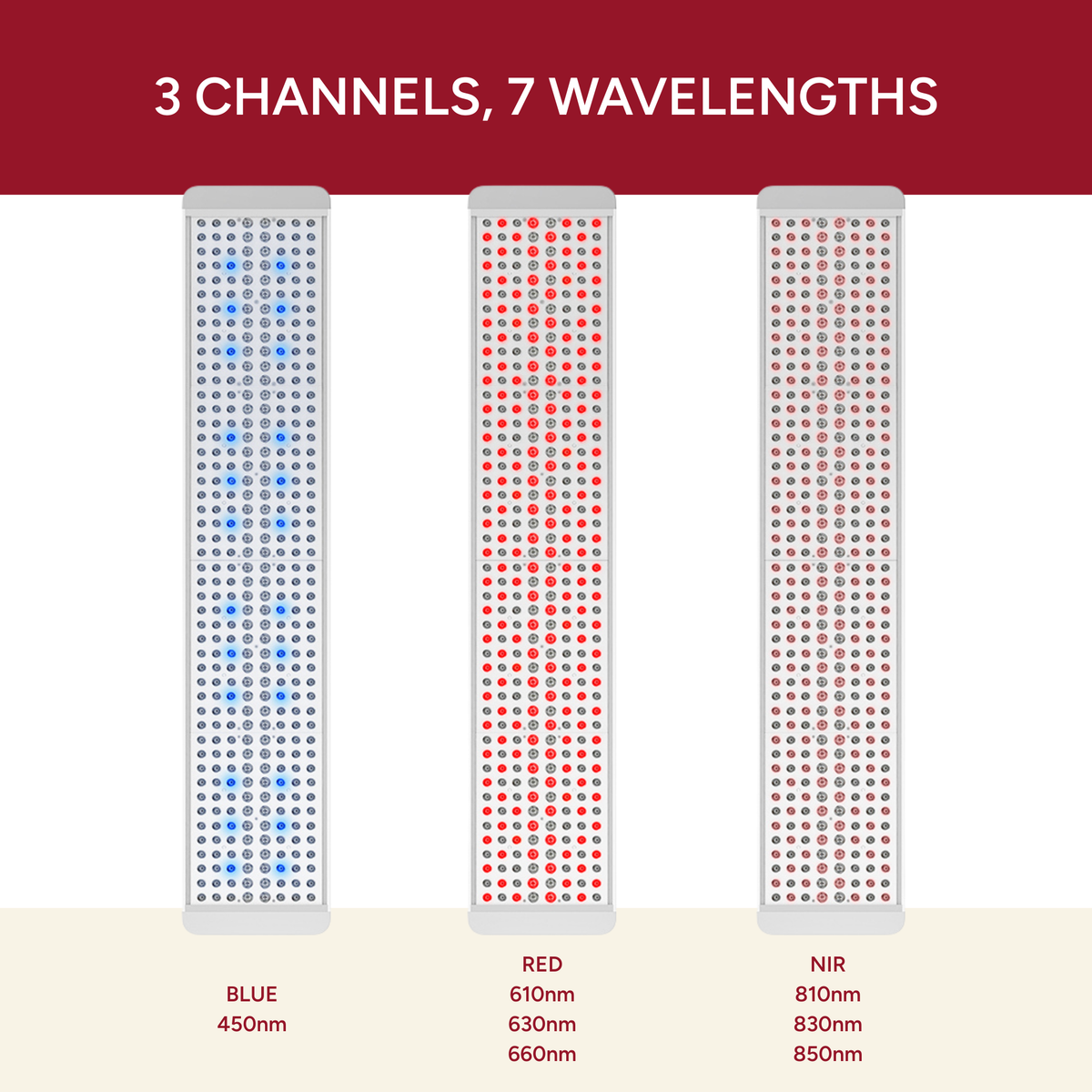

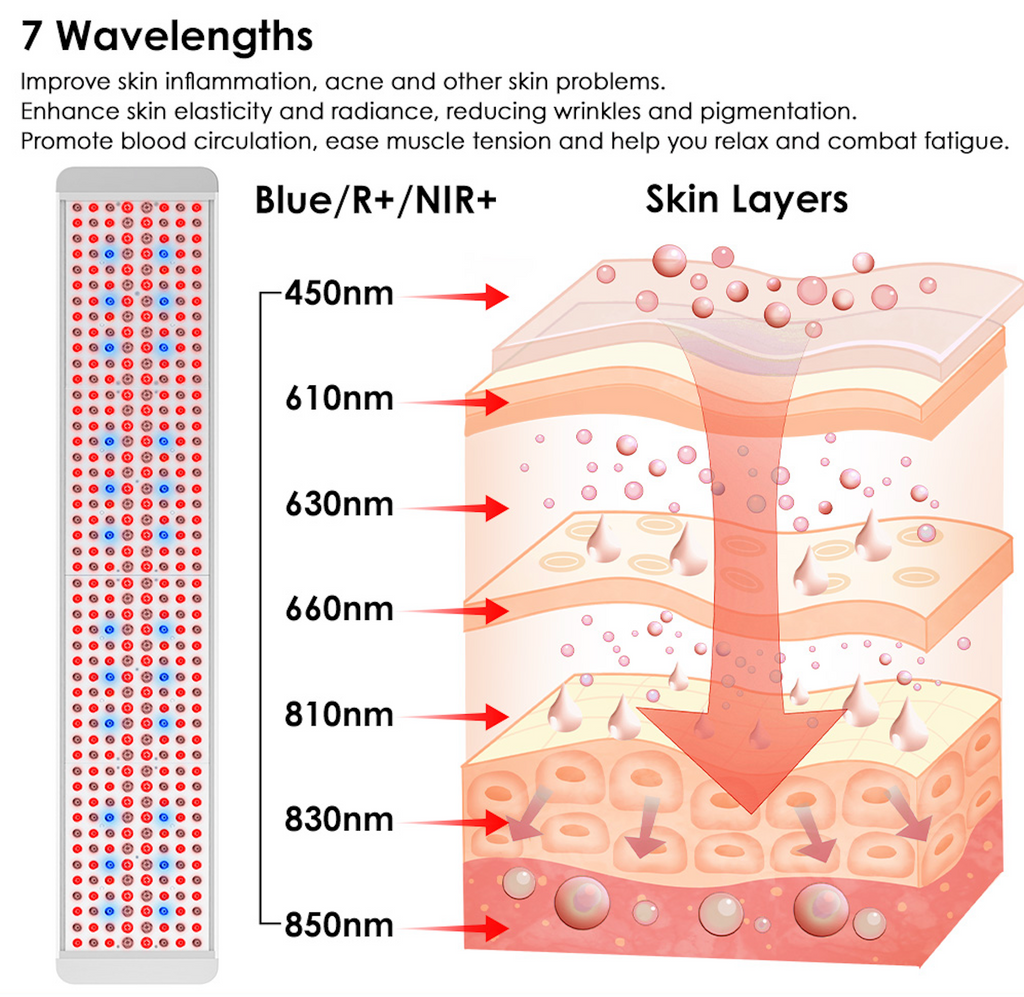

| Wavelengths | 450 nm blue; 610, 630, 660 nm red; 810, 830, 850 nm near-infrared |
| Channels | Red, near-infrared and blue, set independently |
| Irradiance | 680 mW/cm² at 0 in., 195 at 3 in., 135 at 6 in. (Renew figures; the 12 in. value is blank on Renew's page) |
| Beam angle | 15°, 30° and 60° mixed |
| Input | AC 85–240 V |

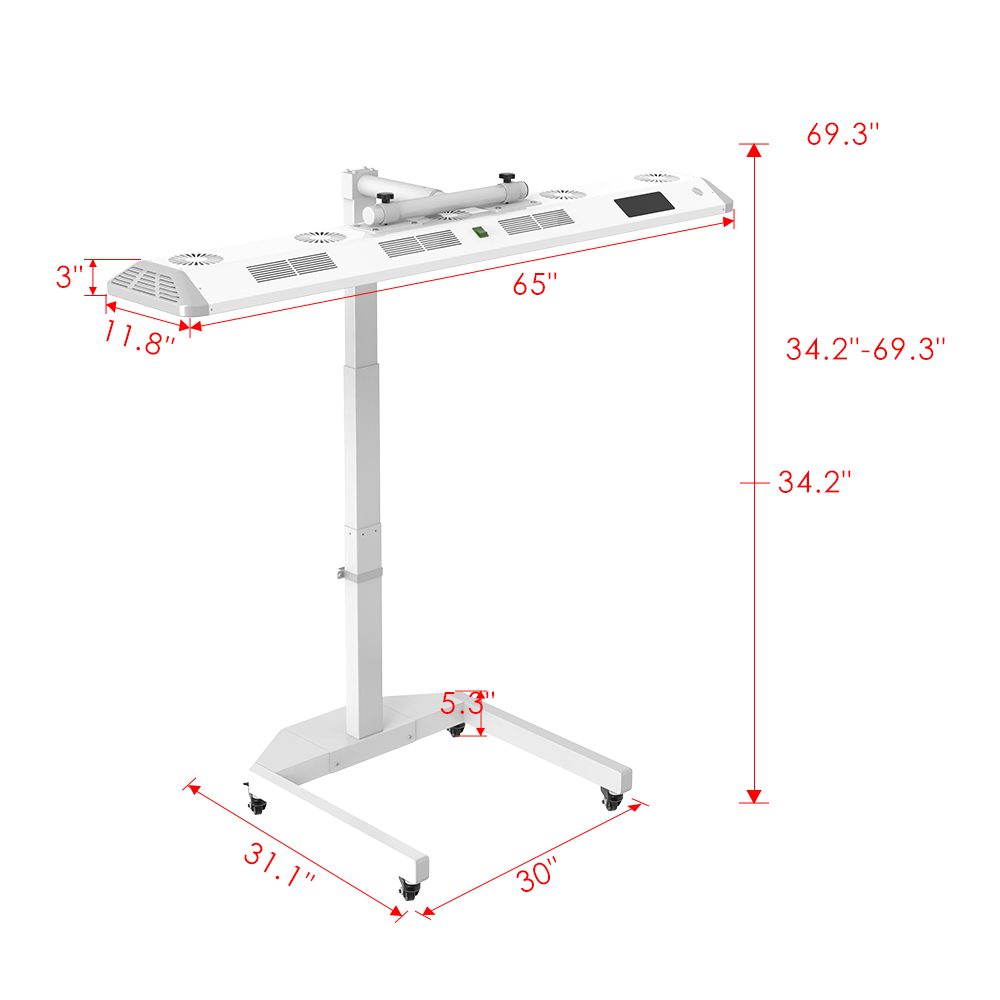

| Panel size | 64.3 H x 11.8 W x 3 D in. |
| Weight | 40 lb |
| Housing | Iron |

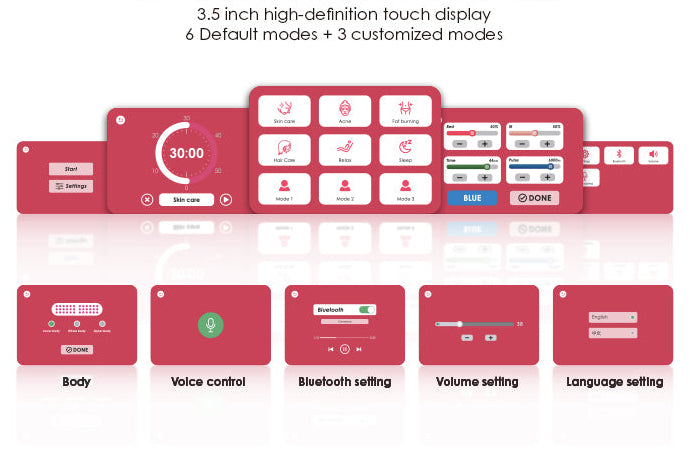

| Controls | 3.5 in. touch screen plus remote; 6 preset modes and a custom mode (per-channel intensity, pulse 0–9,999 Hz, run time, full- or half-body) |
| Stand | 360° rotating, electric lift, locking wheels |
| Flicker / EMF | "No flicker" and "low EMF", per Renew |
| LED lifespan | Over 100,000 hours (Renew rating) |
| Warranty | 3 years, free replacement |
What's in the box
- Panel
- Floor stand
- Power cable
- Remote controller
- Protective glasses (UV400)
- Blackout goggles
- User manual
Good to know
- Lead time: this is a made-to-order panel. Renew quotes roughly 4–6 weeks to ship and offers a faster build for an extra charge; confirm timing before you order if you need it by a date.
- Half-body mode: the custom mode can light only the upper or lower half of the panel, which saves power when you are working on one area.
- Blue light and eyes: blackout goggles are included alongside the UV400 glasses. Use the blackout pair whenever the blue channel is on near the face.
- Not published: power consumption, light-output rating and the 12 in. irradiance figure.
- Regulatory: Renew states that its devices are not medical devices and are intended for cosmetic use only.
- Not ideal for: anyone who needs delivery within a couple of weeks, tight budgets (the Large Panel covers red and near-infrared for less than half the price), or anyone taking medication that increases light sensitivity (check with your doctor first).
Specifications are from the manufacturer; we compared published specs and have not lab-tested this unit.
Written warranty: read Renew Red Light's published warranty terms before you buy. We will also email you the full text free of charge: support@comparadar.com.
Specs at a glance
As published by Renew Red Light. Missing rows mean the brand did not publish a figure.- Form factor
- Panel on motorized rotating stand
- Wavelengths (nm)
- 450 + 610 + 630 + 660 + 810 + 830 + 850
- LEDs
- 480 x 5 W
- Irradiance (brand figure)
- 195 / 135 mW/cm² at 3 / 6 in (Renew); 680 at contact
- Coverage
- 64.3 x 11.8 in
- Voltage
- AC 85–240 V
- Timer
- Custom run time; 20 min suggested
- Controls
- 3.5 in touch screen + remote; 6 presets + custom; 3 channels
- Flicker
- No flicker, per Renew
- EMF (brand figure)
- Low EMF, per Renew
- FDA status (as stated)
- Not a medical device; cosmetic use, per Renew
- Dimensions
- 64.3 x 11.8 x 3 in (panel)
- Weight
- 40 lb
- Warranty
- 3 years, free replacement
Not medical advice. Talk to your doctor before starting sauna or light therapy, especially if you are pregnant, have a heart condition, or take photosensitizing medication. How we make money.
